AIR FILTER TRAP SOLID PARTICLES

such as mineral dust, soot, and organic pieces floating in the air, which is sucked in by the engine.

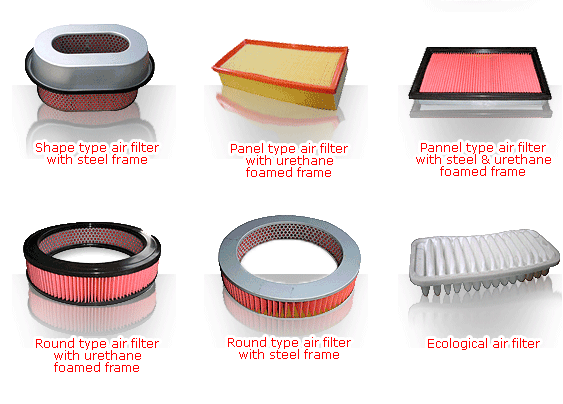

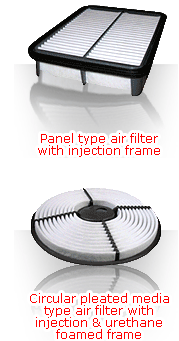

The progress in filter constructing and application of modern filtration materials brings the level of contaminants filtration to the level of 99.9% for particles of even few micrometers size. Whereas the engines use a great amount of air during combustion process(average amount of 10 m3 of air per 1 litre of fuel), filters with high filtering efficiency must also have low flow resistance and high contaminants absorptivity. Due to such properties, it is possible to extend the period between filter replacements. Modern air filters used in the automotive industry are designed and constructed in versatile shapes and sizes and made of different, optimally selected materials.

PERFORMANCE TEST AIR FILTER

TEST REQUIREMENTS
Air Flow Resistance Should be within prescribed value
Pressure drop,kgf/㎠(or Mpa) Gasoline engine over 97.5%
Diesel engine over 98.5%
Life cleaning efficiency Gasoline engine over 98.0% Diesel engine over 99.0%
Recovery attribute Over 97.0%
Destructiveness & punching test Should be no destruction or punching in
